pMTnet Omni Tutorial

Although pMTnet Omni works well with its default setting, we do provide the users with various parameters so that our tool can be configured to cater to your needs.

In this section, we will provide a relatively detailed explanation on important parameters that you can tweak.

Step 1: Instantiation

pMTnet Omni starts by instantiate a pMTnet_Omni_class object. There are only two parameters needed to accomlish this.

Instantiation Parameters

Parameter	Input Format	Acceptable Inputs	Default	Note
model_device	str	“cpu”, “gpu”, None	None	If None, choose based on gpu availability. If cpu, the results might be different from ours.
seed	int	Any integer, None	None	If None, no seed is used

Step 2: Data Importing

During our internal testing, we found that while a mediocre GPU is capable of handling several to hundreds of pairs, for dataset containing thousands of TCR-pMHC pairs, we usually will run out of memory. Partitioning the original data frame is a simple yet effective remedy. Therefore, we provide a parameter partition_size for this exact purpose.

Suppose the user’s data contains 5000 TCR-pMHC pairs. By setting partition_size=2000 we will partition the original data frame into three partitions with 2,000, 2,000, and 1,000 pairs, respectively.

Data Imporing Parameters

Parameter	Input Format	Acceptable Inputs	Default	Note
partition_size	int	Any integer	500	If model_device is “cpu”, it’s not really used

Step 3: TCR-pMHC Affinity Prediction

There are quite a lot you can configure at this stage.

Affinity Prediction Parameters

Parameter	Input Format	Acceptable Inputs	Default	Note
compute_percentile_rank	bool	True, False	False	If False, only the raw affinity scores will be reported.
rank_threshold	float	Any number between 0 and 1	0.03	The rank percentile threshold greater than which further verification is NOT conducted
B	int	Any positive integer	1	Number of trials
check_size	list	List of positive integers	[1000, 10000, 100000]	Explanations provided below
load_size	int	Any positive integer	1,000,000	Explanations provided below
minibatch_size	int	Any positive integer	50,000	Explanations provided below

In general, to get the final percentile ranks for each one of the TCR-pMHC pairs you provided in the dataframe, two steps are involved: getting the raw affinity scores and (you guessed it) computing the percentile ranks.

Raw Affinity Scores

If the argument compute_percentile_rank is False, the program will halt. And only the raw affinity scores will be reported. The rest of the parameters won’t matter.

On the other hand, if compute_percentile_rank=True, the program will proceed to the next stage.

Percentile Ranks

In this stage, we will compare each pair with the background TCRs. As we have millions of background TCRs, it would be time consuming to check each pair against the entire database. Hence, in our implementation, we borrowed an idea from the literature of clinical trials.

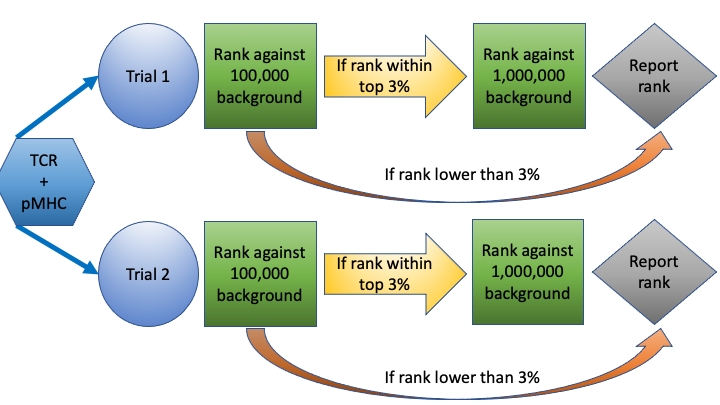

Each TCR-pMHC pair will undergo one or several “trials”, each with a sequence of checks. The procedure is conceptually simple:

Within a “trial”, each TCR-pMHC pair will be first checked against a small subset of the background TCRs. If the predicted binding is strong enough, we sample a larger subset of the background TCRs and check the given pair against them. The process repeats until either the pair falls out of the top rank list or it has been validated against enough background TCRs, at which point, the algorithm reports the final rank.

Two parameters load_size and minibatch_size could be somewhat confusing. But they are implemented to further speed up the prediction process.

load_size is implemented so that for each trial, only that many background TCRs will be potentially used. This is because the background TCRs datasets are relatively large, meaning that initializing the dataloaders will be time consuming.

minibatch_size is how many background TCRs the dataloader will sample within a check_size. For example, is the current check_size is 2,000 and the minibatch_size is 1,000. Then the dataloader will first load 1,000 TCRs, compute the rank, load another 1,000 TCRs, and update the rank. This will speed up the process as directly load, say 1,000,000 TCRs will be slow.

Sample Output

We also provide other supporting files for your to download.

Parameter Summary

Parameter Summary

Parameter	Input Format	Acceptable Inputs	Default	Note
model_device	str	“cpu”, “gpu”, None	None	If None, choose based on gpu availability. If cpu, the results might be different from ours.
seed	int	Any integer, None	None	If None, no seed is used
partition_size	int	Any integer	500	If model_device is “cpu”, it’s not really used
compute_percentile_rank	bool	True, False	False	If False, only the raw affinity scores will be reported.
rank_threshold	float	Any number between 0 and 1	0.03	The rank percentile threshold greater than which further verification is NOT conducted
B	int	Any positive integer	1	Number of trials
check_size	list	List of positive integers	[1000, 10000, 100000]
load_size	int	Any positive integer	1,000,000
minibatch_size	int	Any positive integer	50,000
